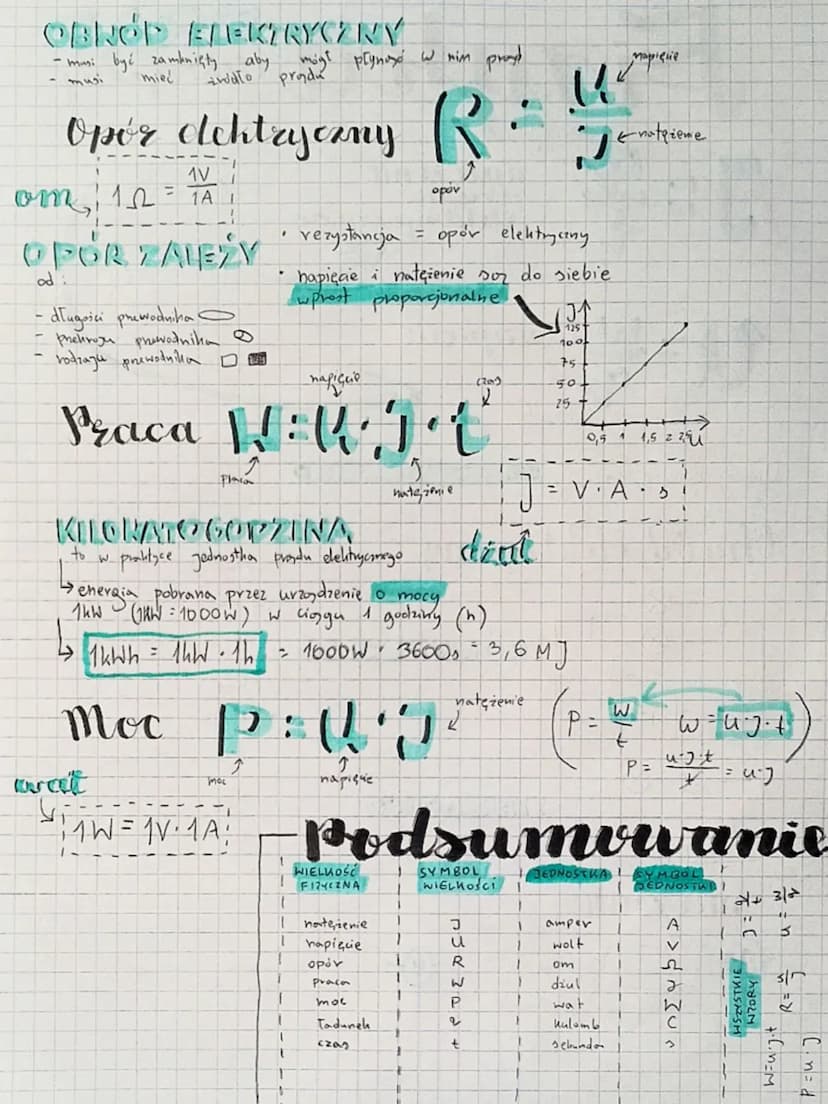

Electrical Quantities and Relationships

This page delves deeper into electrical quantities, their relationships, and practical applications in Fizyka prąd elektryczny wzory.

Electrical Resistance

The concept of electrical resistance (opór elektryczny) is introduced:

Definition: Electrical resistance, denoted as R, is measured in ohms (Ω) and represents the opposition to current flow in an electrical circuit.

The page notes that resistance depends on:

• Length of the conductor
• Cross-sectional area of the conductor
• Type of conductor material

Ohm's Law

The fundamental relationship between voltage, current, and resistance is explained through Prawo Ohma klasa 8 fizyka:

Highlight: Voltage (U) and current intensity (I) are directly proportional, with resistance (R) as the constant of proportionality: U = I * R

Electrical Power and Energy

The page covers electrical power and energy consumption:

• Power (P) is measured in watts (W)
• Energy consumption is often measured in kilowatt-hours (kWh)

Example: A device with a power rating of 1 kW consumes 1 kWh of energy when operated for one hour.

Electrical Quantities Summary

A comprehensive table summarizes key electrical quantities, their symbols, and units:

| Quantity | Symbol | Unit | Unit Symbol | |----------|--------|------|-------------| | Current Intensity | I | Ampere | A | | Voltage | U | Volt | V | | Resistance | R | Ohm | Ω | | Work/Energy | W | Joule | J | | Power | P | Watt | W | | Electric Charge | q | Coulomb | C | | Time | t | Second | s |

Vocabulary: The coulomb (C) is the SI unit of electric charge, representing the amount of charge transferred by a current of 1 ampere in 1 second.

Graphical Representation

The page includes a graph illustrating the linear relationship between voltage and current intensity, which is fundamental to understanding Prawo Ohma klasa 8 fizyka.

These concepts and relationships form the core of Prąd elektryczny klasa 8 powtórzenie PDF materials and are essential for solving problems in Prąd elektryczny klasa 8 sprawdzian assessments.

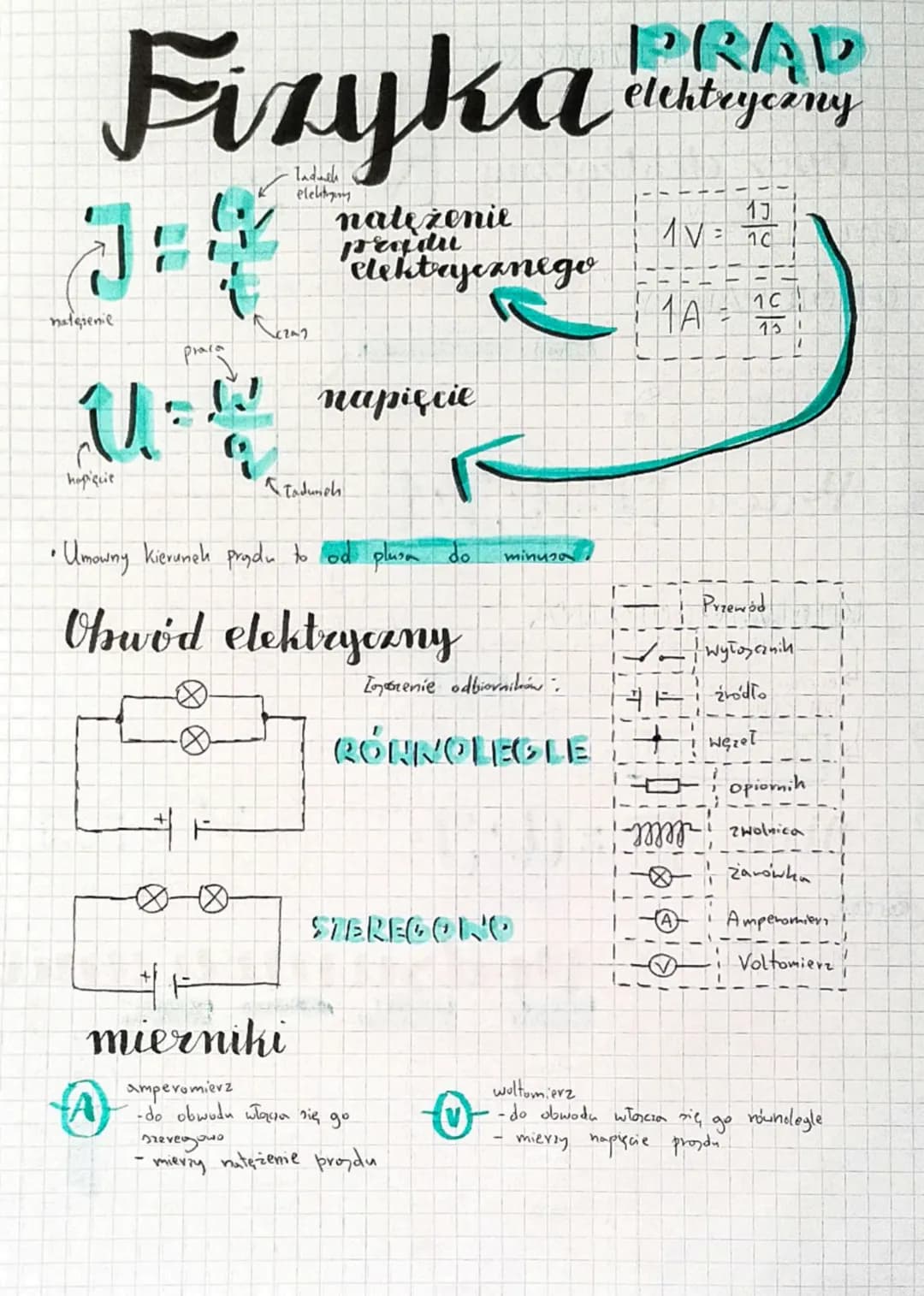

Electrical Circuit Components and Measurements

This page introduces fundamental concepts of electrical circuits and measurement tools used in Fizyka klasa 8.

Circuit Components

The page illustrates various components of an electrical circuit:

• Power source (źródło)
• Switch (wyłącznik)
• Resistor (opornik)
• Light bulb (żarówka)
• Wires (przewód)

Vocabulary: A circuit node (węzeł) is a point where two or more circuit elements connect.

Current Direction

The conventional direction of electric current is defined as flowing from positive to negative.

Highlight: The conventional current direction is from the positive terminal to the negative terminal of a power source.

Measurement Instruments

Two key instruments for measuring electrical quantities are introduced:

1. Ammeter (Amperomierz):
   • Connected in series within the circuit
   • Measures electric current intensity

Example: An ammeter is used to measure the natężenie prądu (current intensity) flowing through a circuit component.

2. Voltmeter (Woltomierz):
   • Connected in parallel to circuit components
   • Measures electrical potential difference (voltage)

Definition: Voltage (napięcie) is the electrical potential difference between two points in an electrical circuit.

Circuit Connections

The page also touches on two types of circuit connections:

• Series connection (SZEREGOWO)
• Parallel connection (RÓWNOLEGLE)

These concepts are crucial for understanding more complex circuit arrangements and their behaviors in Prąd elektryczny klasa 8 powtórzenie.
