Center of Mass of a Rigid Body

This page delves into the concept of the center of mass of a rigid body, which is crucial for understanding the overall motion and balance of objects.

For regular shapes like circles, squares, spheres, and cylinders, the center of mass is located at their geometric center. However, for irregular shapes or systems of multiple objects, we need to calculate the center of mass using specific formulas.

Definition: The center of mass is the average position of mass in a body or system of particles.

The general formula for the center of mass of a system is presented:

x_CM = $Σ m_i * x_i$ / $Σ m_i$

Where x_CM is the x-coordinate of the center of mass, m_i is the mass of each particle, and x_i is the x-coordinate of each particle.

Highlight: This formula can be extended to two and three dimensions by including y and z coordinates.

The page emphasizes that the center of mass is the point where the system remains balanced, which is a key principle in rigid body mechanics.

Vocabulary: The terms "center of mass" and "center of gravity" are often used interchangeably in uniform gravitational fields.

This section provides a solid foundation for understanding how to determine the center of mass and its significance in physics problems involving rigid body motion.

Center of Mass Example in Two Dimensions

This page presents a practical example of calculating the center of mass for a rigid body in two dimensions, specifically for an equilateral triangle with masses at its vertices.

The example shows a triangle with side length 'a' and equal masses m at each corner. The goal is to find the coordinates of the center of mass (x_CM, y_CM).

Example: For an equilateral triangle with side length 'a' and equal masses at each vertex: x_CM = $m * 0 + m * a + m * a/2$ / (3m) = a/2 y_CM = $m * 0 + m * 0 + m * a√3/2$ / (3m) = a√3/6

This calculation demonstrates how to apply the center of mass formula in a two-dimensional scenario, which is a common problem in rigid body mechanics.

Highlight: The center of mass of this system coincides with the geometric center of the equilateral triangle, which is located at $a/2, a√3/6$ from the bottom-left vertex.

This example helps students understand how to approach more complex center of mass problems, including those involving multiple objects or irregular shapes. It also reinforces the connection between geometry and mass distribution in physics.

Vocabulary: In this context, the center of mass is equivalent to the centroid of the triangle, assuming uniform mass distribution.

Understanding such examples is crucial for solving more advanced problems in physics and engineering, where the concept of center of mass plays a vital role in analyzing the behavior of complex systems.

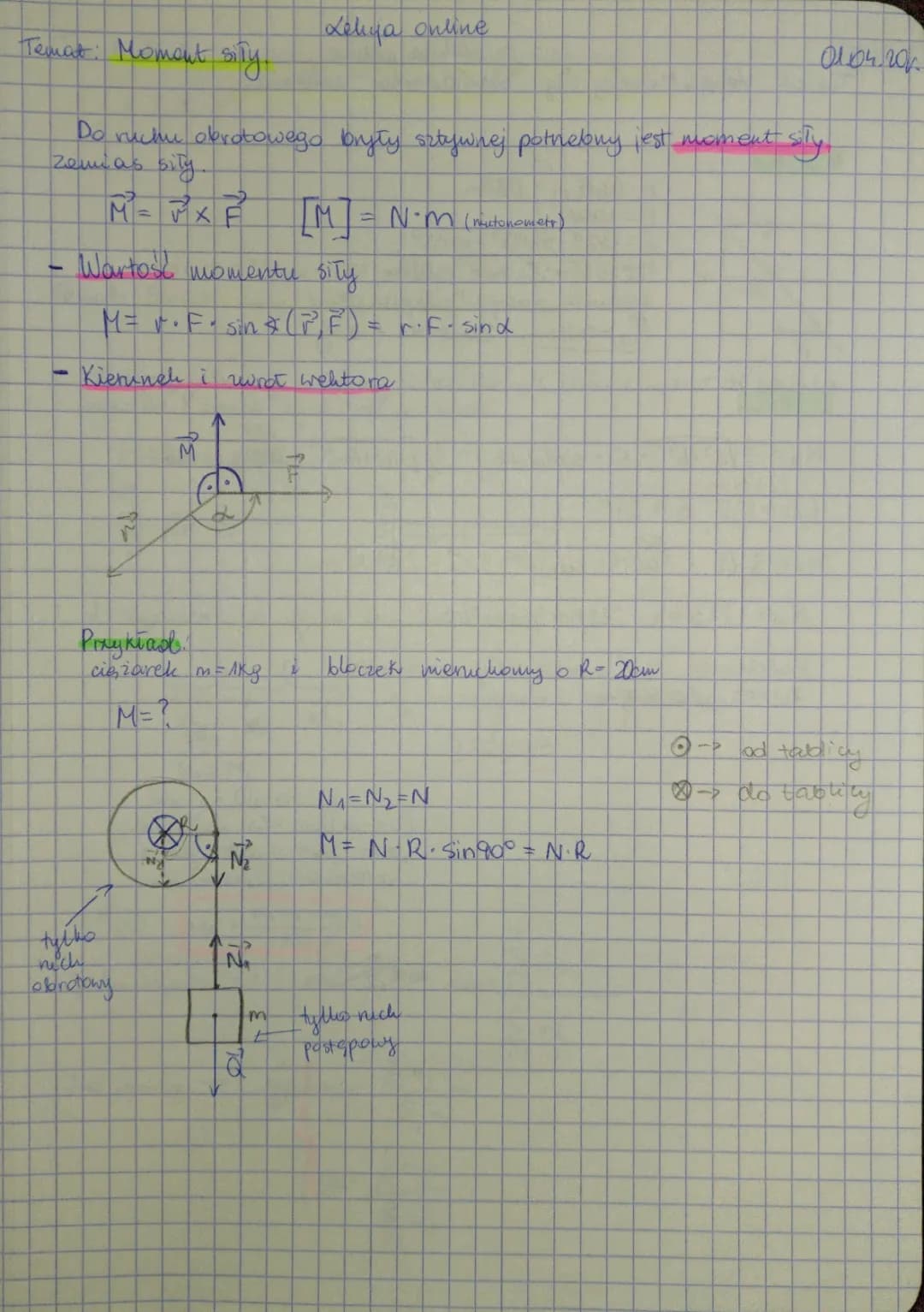

Moment of Force

This page introduces the concept of moment of force, which is essential for understanding the rotational motion of a rigid body.

The moment of force definition is presented mathematically as M = r × F, where r is the position vector and F is the applied force. The moment of force formula is further expanded to M = r * F * sin θ, where θ is the angle between r and F.

Definition: The moment of force, also known as torque, is the rotational equivalent of linear force in physics.

Vocabulary: The unit of moment of force is Newton-meter (N·m).

The direction and orientation of the moment of force vector are determined using the right-hand rule, perpendicular to both r and F.

An example is provided to illustrate the calculation of moment of force:

Example: A weight of 1 kg is attached to a frictionless pulley with a radius of 20 cm. The moment of force is calculated as M = N * R, where N is the tension in the rope and R is the radius of the pulley.

This example demonstrates how the moment of force relates to moment of inertia in a practical scenario, showcasing the application of the moment of force equation in a simple mechanical system.
