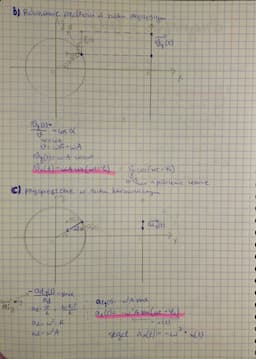

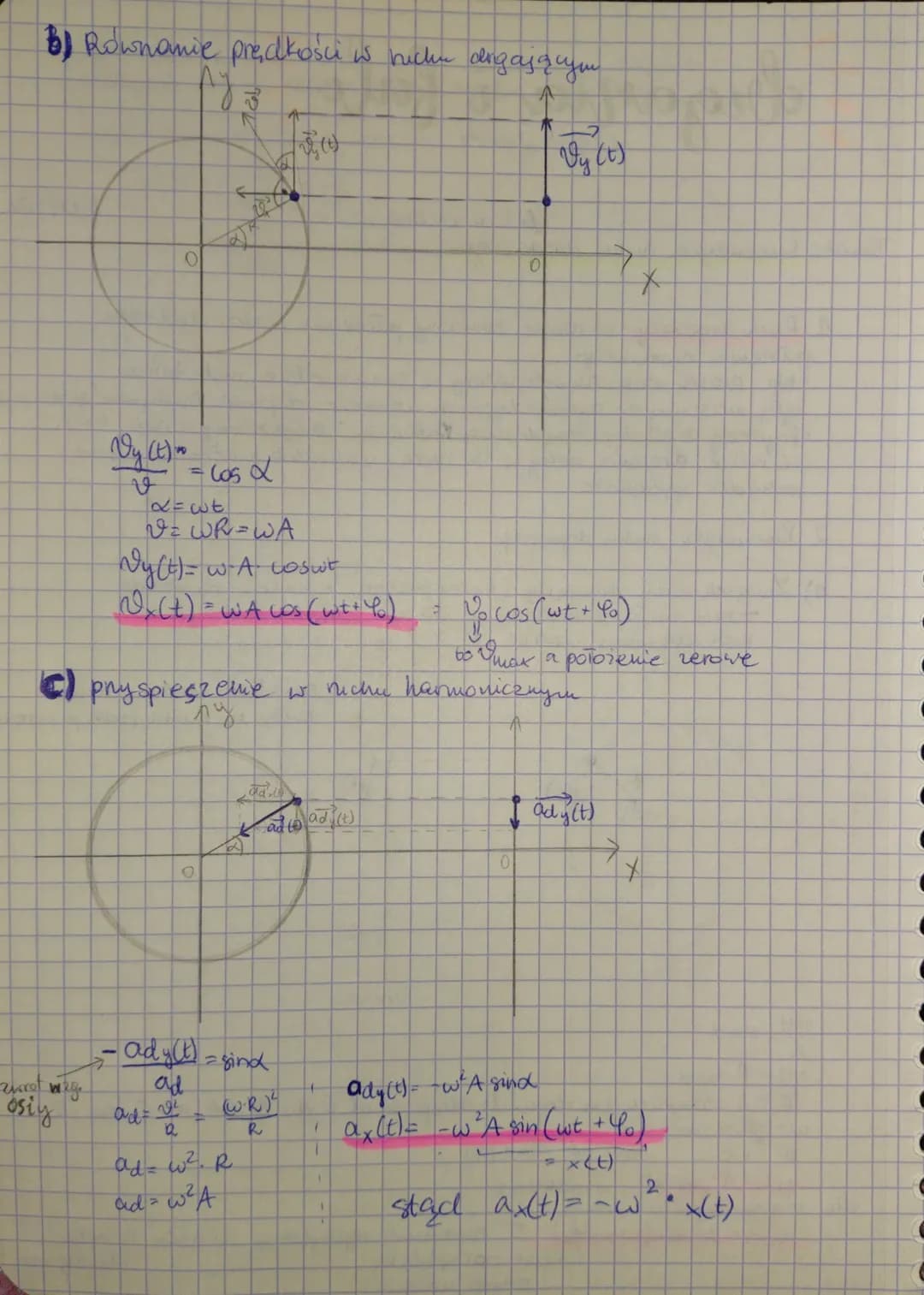

Velocity and Acceleration in Harmonic Motion

This page delves deeper into the kinematics of harmonic motion by deriving the equations for velocity and acceleration. These equations are essential for a complete understanding of oscillatory motion and its applications.

The velocity in harmonic motion is obtained by differentiating the displacement equation with respect to time. This results in a cosine function that describes how the speed of the oscillating object changes throughout its cycle.

Definition: The velocity equation for simple harmonic motion is v$t$ = ωA · cos$ωt + φ₀$.

Similarly, the acceleration is found by differentiating the velocity equation. The resulting expression shows that acceleration in harmonic motion is proportional to displacement but in the opposite direction.

Definition: The acceleration equation for simple harmonic motion is a$t$ = -ω²A · sin$ωt + φ₀$ = -ω²x$t$.

Highlight: The negative sign in the acceleration equation indicates that the acceleration is always directed towards the equilibrium position, which is a key characteristic of simple harmonic motion.

These equations reveal important relationships between displacement, velocity, and acceleration in harmonic motion:

1. The maximum speed occurs at the equilibrium position $x = 0$.
2. The maximum acceleration occurs at the extremes of motion $x = ±A$.
3. When the displacement is maximum, the velocity is zero, and vice versa.

Example: In a simple pendulum, the bob moves fastest as it swings through its lowest point (equilibrium) and comes to a momentary stop at the highest points of its swing.

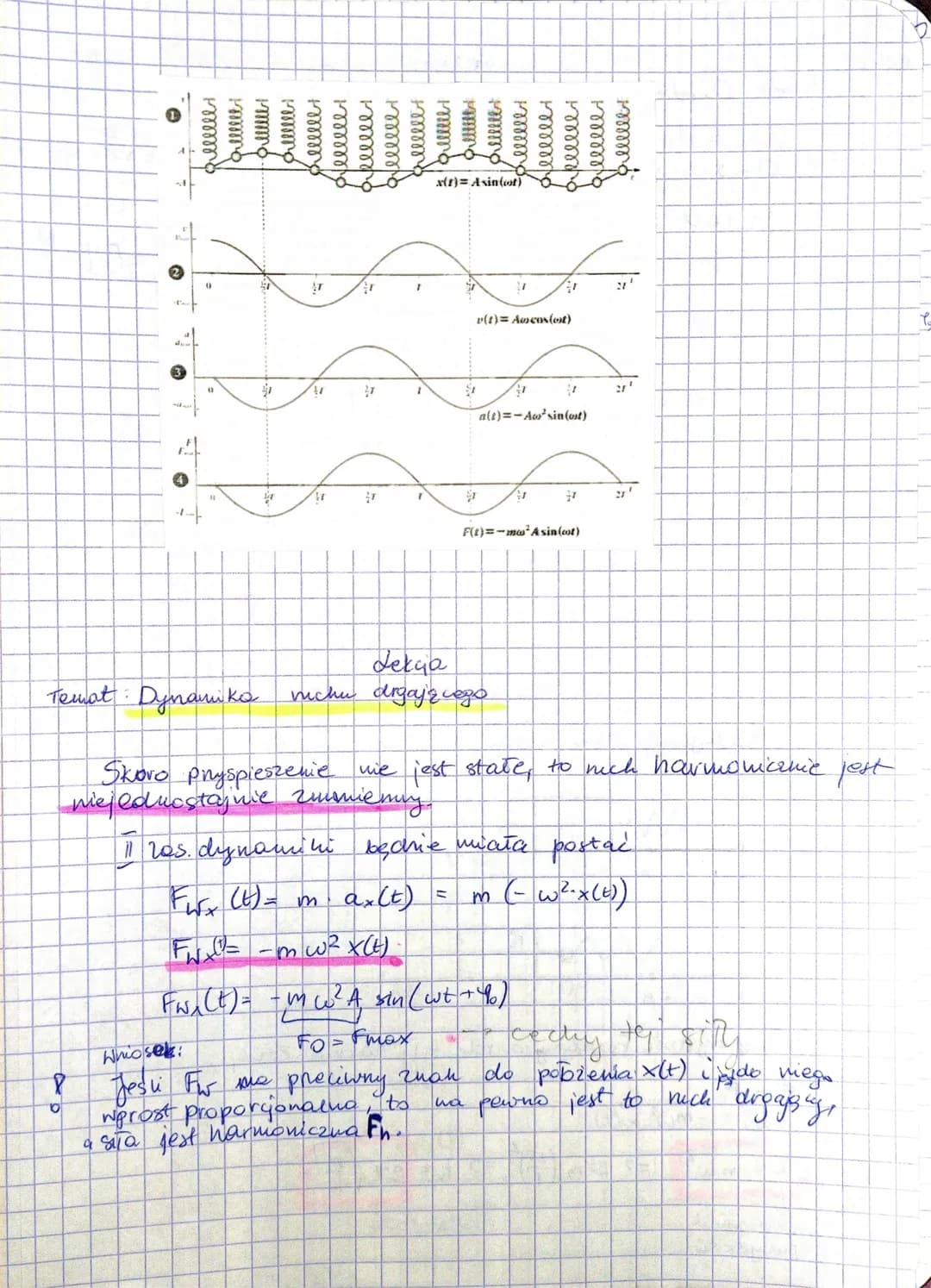

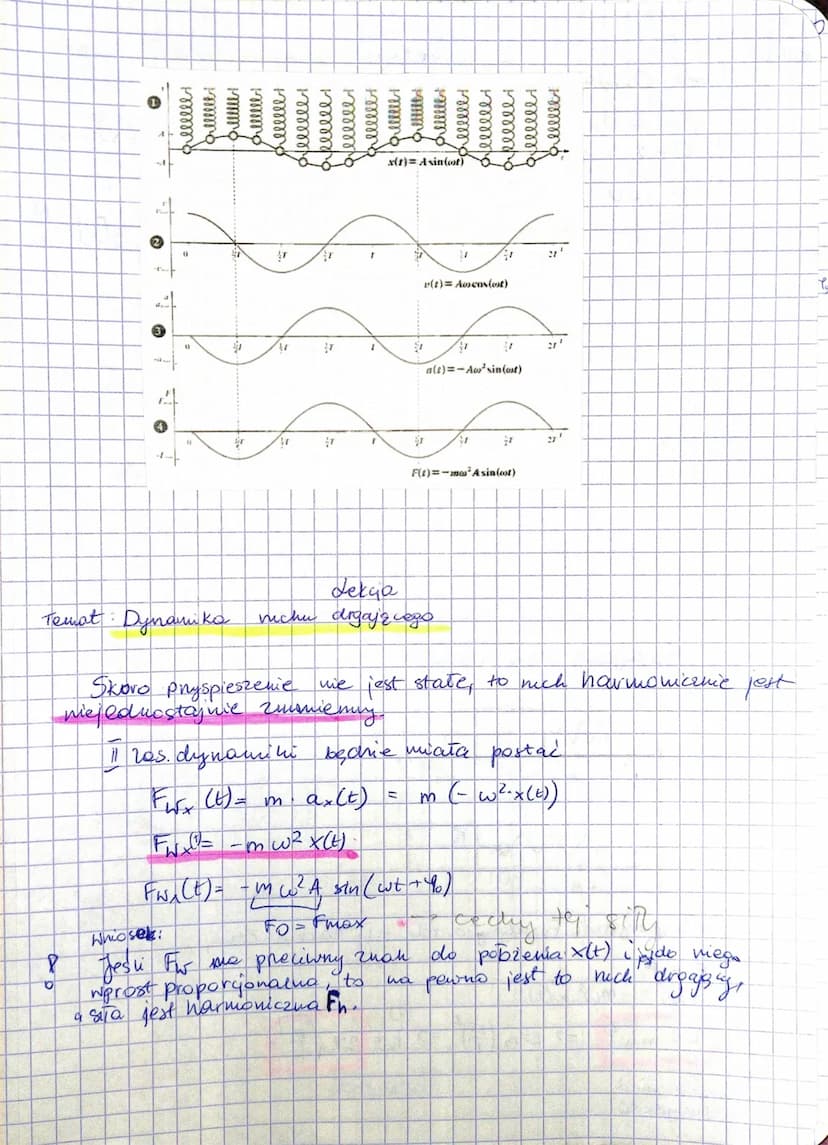

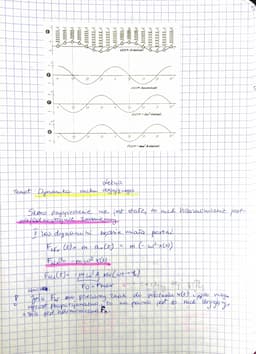

Dynamics of Oscillatory Motion

This page focuses on the forces involved in harmonic motion and introduces the concept of restoring force, which is crucial for maintaining oscillations.

In simple harmonic motion, the net force acting on the object is proportional to its displacement from the equilibrium position and always directed towards that point. This force is called the restoring force.

Definition: The restoring force in simple harmonic motion is given by F = -kx, where k is the spring constant and x is the displacement from equilibrium.

By applying Newton's Second Law of Motion $F = ma$ to the restoring force equation, we can derive the differential equation that governs simple harmonic motion:

m$-ω²x$ = -kx

This equation shows that the angular frequency of oscillation is related to the mass of the object and the stiffness of the system:

ω² = k/m

Highlight: The frequency of oscillation in a simple harmonic system depends only on its physical properties (mass and spring constant) and not on the amplitude of motion.

The page also touches on energy considerations in harmonic motion, noting that the total energy of the system (kinetic + potential) remains constant throughout the oscillation, although the proportion of each type changes continuously.

Example: In a mass-spring system, the energy constantly shifts between kinetic energy (when the mass is moving fastest at the equilibrium position) and potential energy (when the spring is maximally stretched or compressed).

Understanding the dynamics of harmonic motion is essential for analyzing more complex oscillating systems and wave phenomena in various branches of physics and engineering.

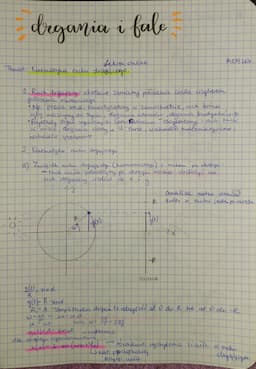

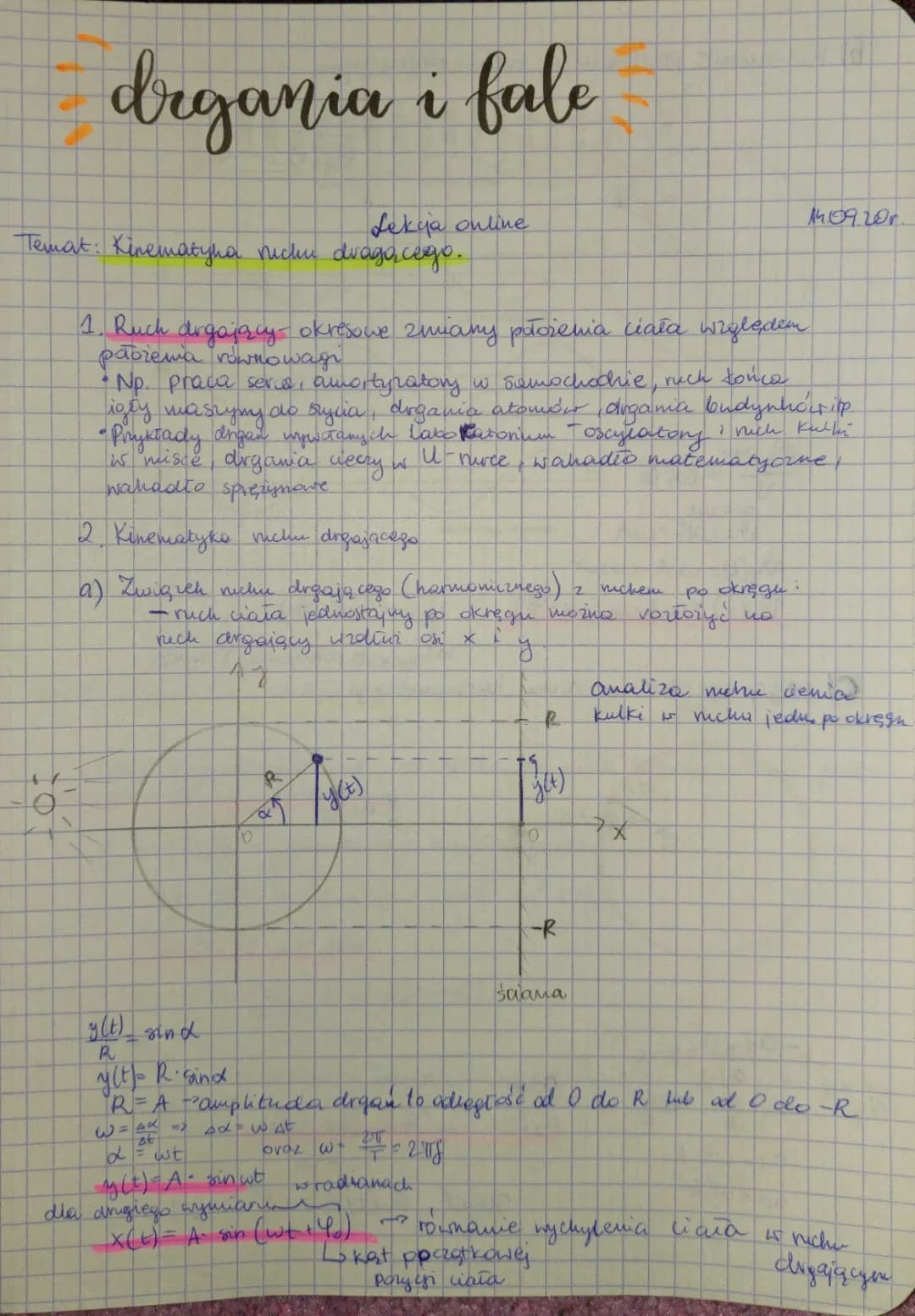

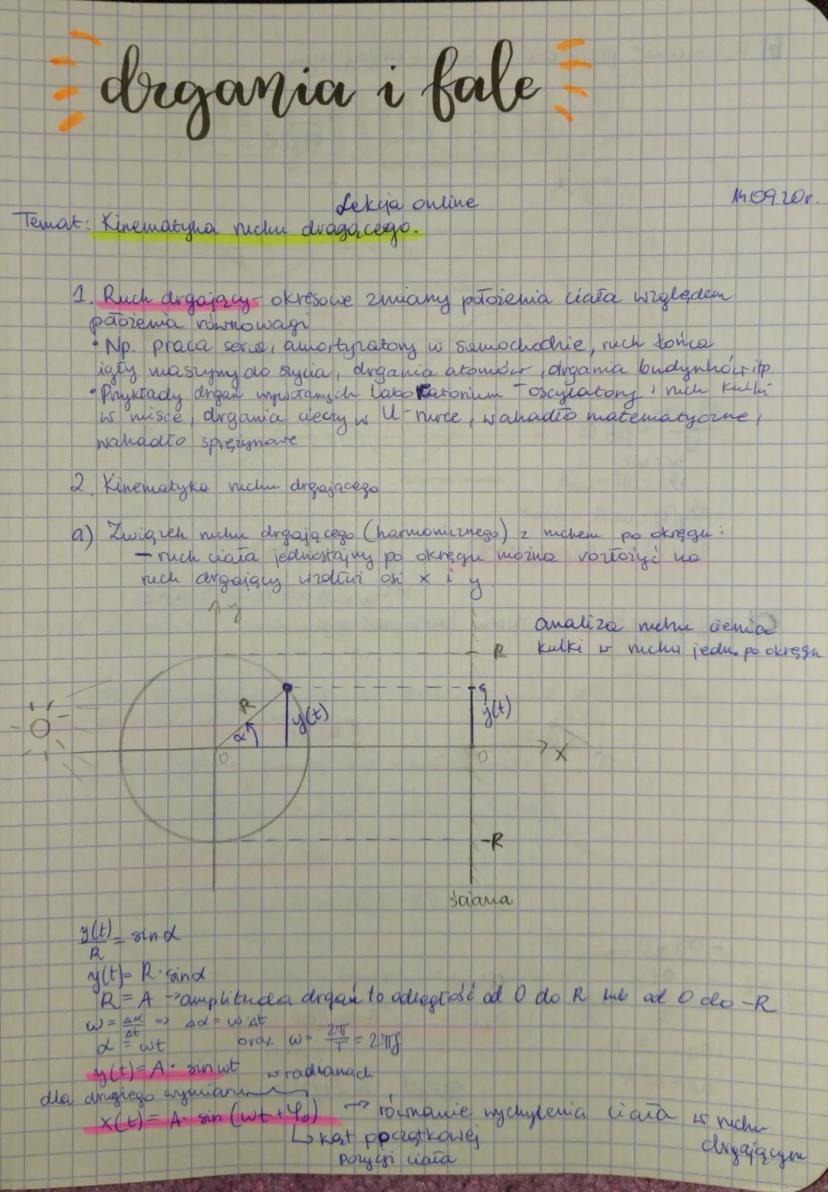

Kinematics of Oscillatory Motion

This page introduces the concept of harmonic motion and its mathematical description. Oscillatory motion is a type of periodic movement where an object repeatedly changes its position relative to an equilibrium point.

Example: Common examples of harmonic motion include the beating of a heart, car engine pistons, pendulum swings, and vibrations of atoms in molecules.

The kinematics of harmonic motion can be understood by analyzing the projection of uniform circular motion onto a straight line. This relationship allows us to derive the equation for the displacement of an object in simple harmonic motion.

Definition: The displacement equation for simple harmonic motion is x$t$ = A · sin$ωt + φ₀$, where A is the amplitude, ω is the angular frequency, t is time, and φ₀ is the initial phase.

Vocabulary: • Amplitude (A): The maximum displacement from the equilibrium position • Angular frequency (ω): Relates to the frequency $f$ and period (T) of oscillation by ω = 2πf = 2π/T

The page also introduces the concept of phase angle and its relationship to the object's position in its cycle of motion.

Highlight: Understanding the mathematical description of harmonic motion is crucial for solving problems and predicting the behavior of oscillating systems in physics and engineering.
