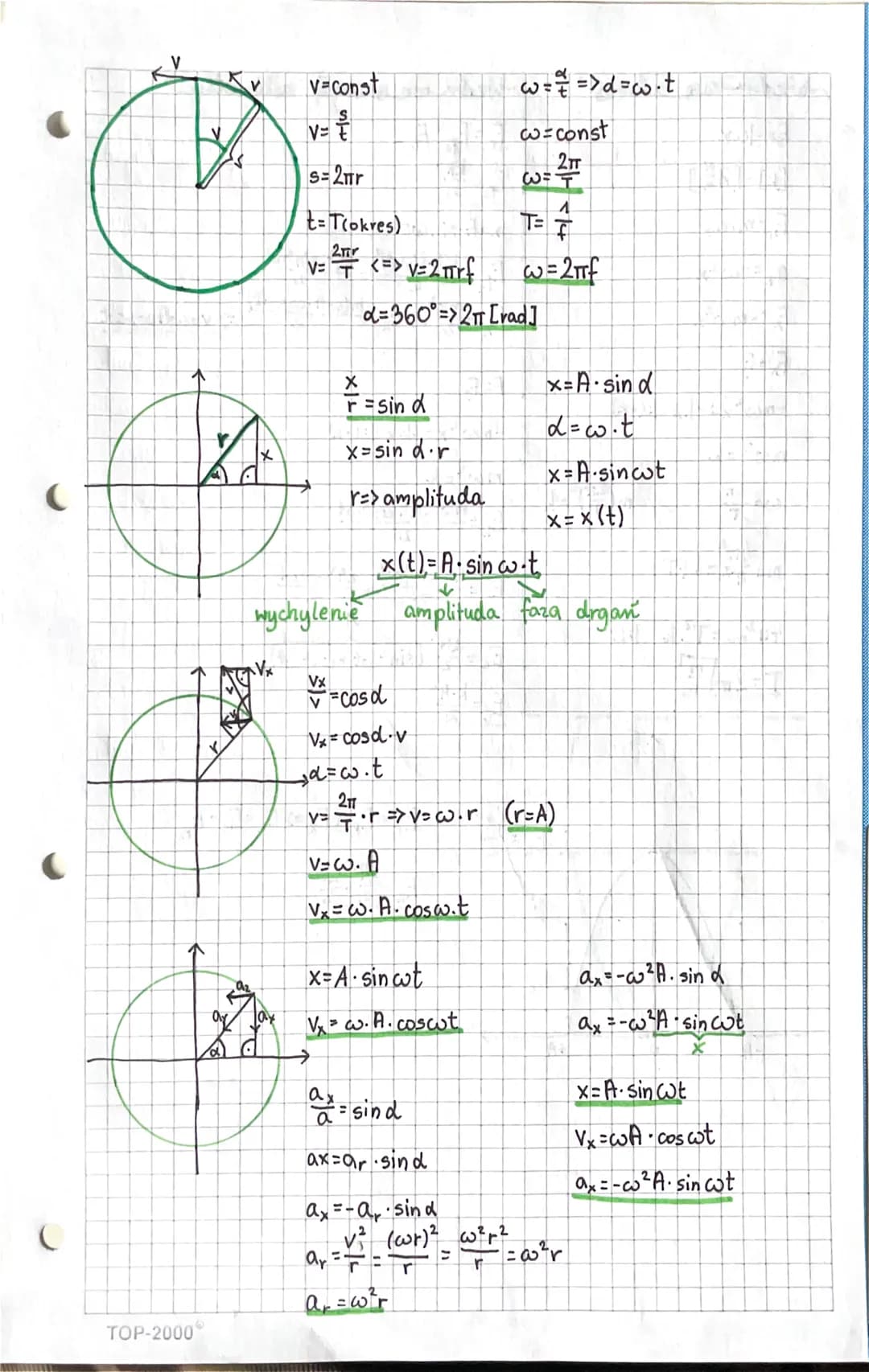

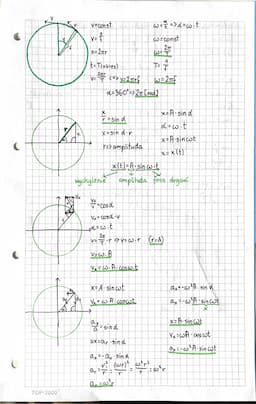

Mathematical Description of Harmonic Motion

This page delves into the mathematical representation of harmonic motion, providing formulas for displacement, velocity, and acceleration.

Definition: In harmonic motion, the displacement $x$ as a function of time $t$ is given by the equation: x$t$ = A · sin(ωt)

Where:

• A is the amplitude
• ω is the angular frequency $ω = 2πf$
• t is time

Velocity in harmonic motion: v_x = ω · A · cos(ωt)

Acceleration in harmonic motion: a_x = -ω² · A · sin(ωt)

Highlight: The negative sign in the acceleration formula indicates that the acceleration is always directed towards the equilibrium position.

Additional formulas:

• Angular frequency: ω = 2πf = 2π/T
• Velocity amplitude: v_max = ω · A
• Acceleration amplitude: a_max = ω² · A

Example: For a simple pendulum, the period T is related to its length L and gravitational acceleration g by the formula: T = 2π√(L/g)

These equations form the foundation for analyzing and predicting the behavior of oscillating systems in various applications of physics and engineering.

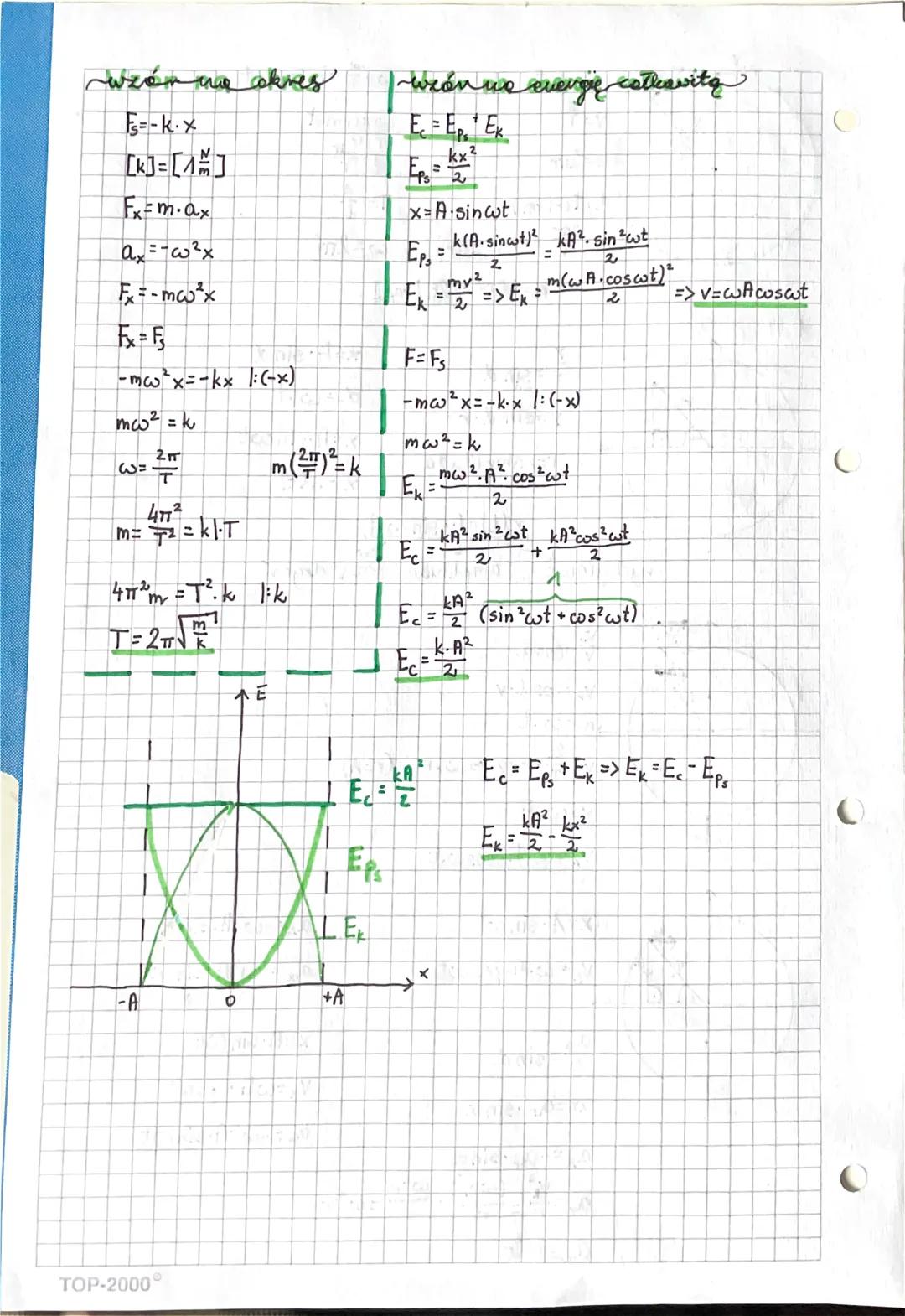

Energy and Force in Oscillatory Systems

This page focuses on the energy considerations and force relationships in oscillatory systems, particularly for spring-mass systems.

Definition: The restoring force (F) in a spring-mass system is given by Hooke's Law: F = -kx, where k is the spring constant and x is the displacement.

Energy in oscillatory motion:

1. Potential Energy: E_p = $1/2$kx²
2. Kinetic Energy: E_k = $1/2$mv²
3. Total Energy: E = E_p + E_k = $1/2$kA²

Highlight: The total energy in an ideal oscillatory system remains constant, with energy continuously converting between potential and kinetic forms.

Important relationships:

• Angular frequency and spring constant: ω² = k/m
• Period and spring constant: T = 2π√(m/k)

Example: In a spring-mass system, if the mass is doubled, the period increases by a factor of √2.

Energy distribution in harmonic motion:

• At maximum displacement: All energy is potential
• At equilibrium position: All energy is kinetic
• At intermediate positions: Energy is part potential and part kinetic

Vocabulary: The natural frequency of an oscillating system is the frequency at which it tends to oscillate in the absence of driving or damping forces.

Understanding these energy and force relationships is crucial for analyzing more complex oscillatory systems and their applications in various fields of physics and engineering.

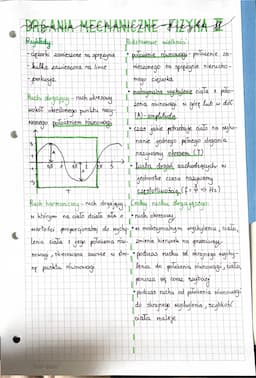

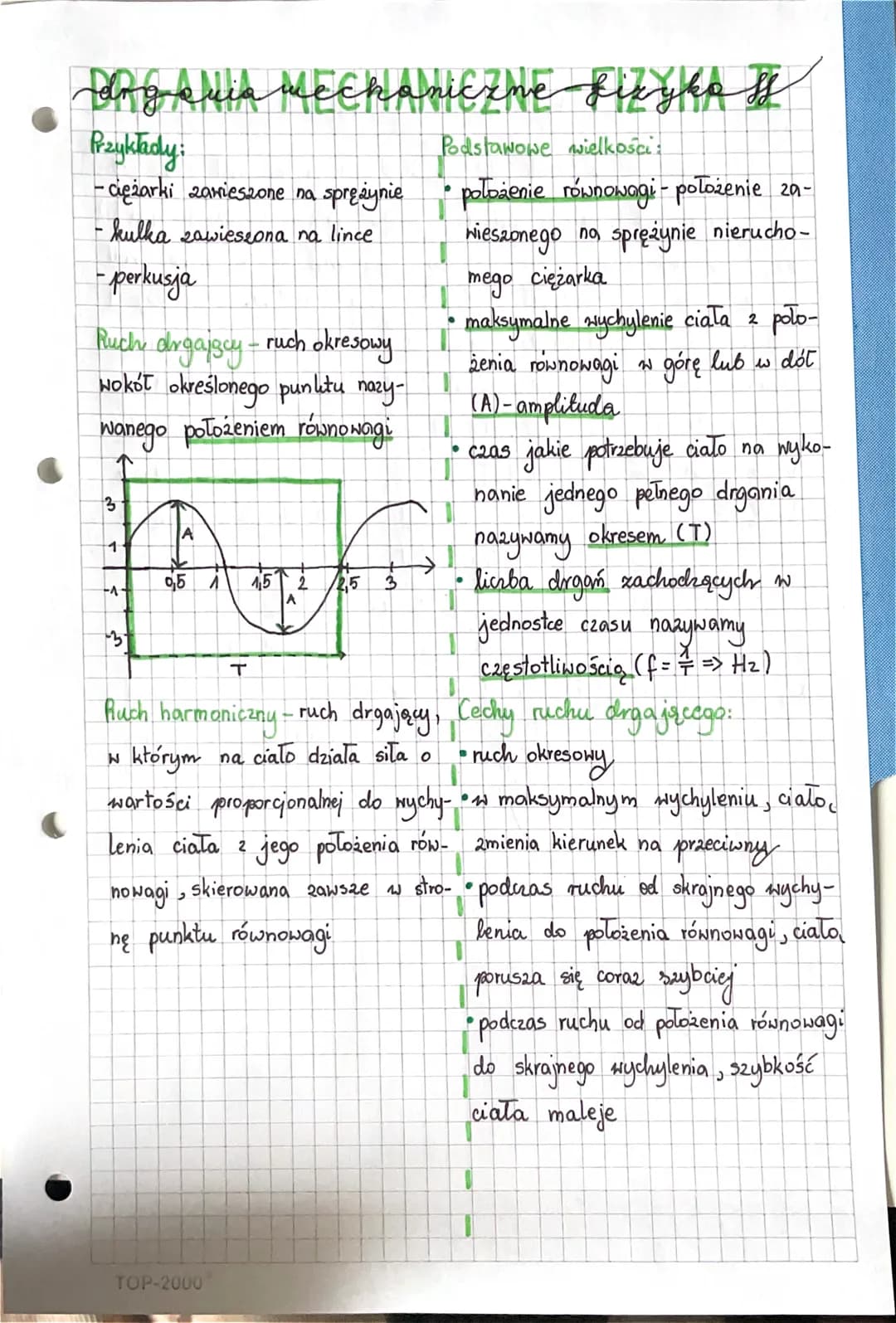

Introduction to Mechanical Oscillations

Mechanical oscillations are a fundamental concept in physics, describing repetitive motion around an equilibrium point. This page introduces key concepts and provides real-world examples of oscillatory motion.

Definition: Mechanical oscillations refer to periodic motion around a specific point called the equilibrium position.

Examples of mechanical oscillations include:

• Weights suspended on springs
• A ball hanging on a string
• Percussion instruments

Highlight: Oscillatory motion is characterized by its repetitive nature, always returning to the equilibrium position.

Key quantities in oscillatory motion:

1. Equilibrium position: The resting position of an object suspended on a spring when not in motion.
2. Amplitude (A): The maximum displacement from the equilibrium position, either upwards or downwards.
3. Period (T): The time required for one complete oscillation.
4. Frequency $f$: The number of oscillations occurring in a unit of time, calculated as f = 1/T and measured in Hertz (Hz).

Vocabulary: Harmonic motion is a specific type of oscillatory motion where the restoring force is proportional to the displacement and always directed towards the equilibrium position.

Characteristics of oscillatory motion:

• Periodic nature
• Reversal of direction at maximum displacement
• Increasing speed when moving from maximum displacement to equilibrium
• Decreasing speed when moving from equilibrium to maximum displacement
